For Sale

• 4 identical units, Commercial OP 2001
• Less than 700 lifetime fired hours
• Dry Low NOx plus SCR
• Operated by Municipal Utility, USA site
• Still interconnected to grid
• GE Air Cooled electric generators
• GE Speedtronic MKVI Controls

For Sale As Equipment only

OR

For Sale As
Operating Power Station

Genset ISO

Rating

• 11,250 kwe each
• 14,250 kva each
• 13,800 V
• 10892 btu/kwh (lhv)

• Mfg by Stewart & Stevenson 1995

• Heat rate at site 9800 btu/kwh (hhv)

• Evap Cooling with anti-ice coil

• Woodward Controls, nat gas fuel sys

• Air Cooled Brush gen 13.8 kv, 70 mva

• 25 ppm NOx via steam inj

• In Service -Greeley, CO until June 2011

• Lifetime fired hrs Since New    95,978

• Fired Hrs Since Overhaul    44,434

• Fired Hrs Since Hot Section ~12,700

• Fired Hrs Since LPT Replaced~4,500

• Lifetime Starts    627

• Brand new, never installed

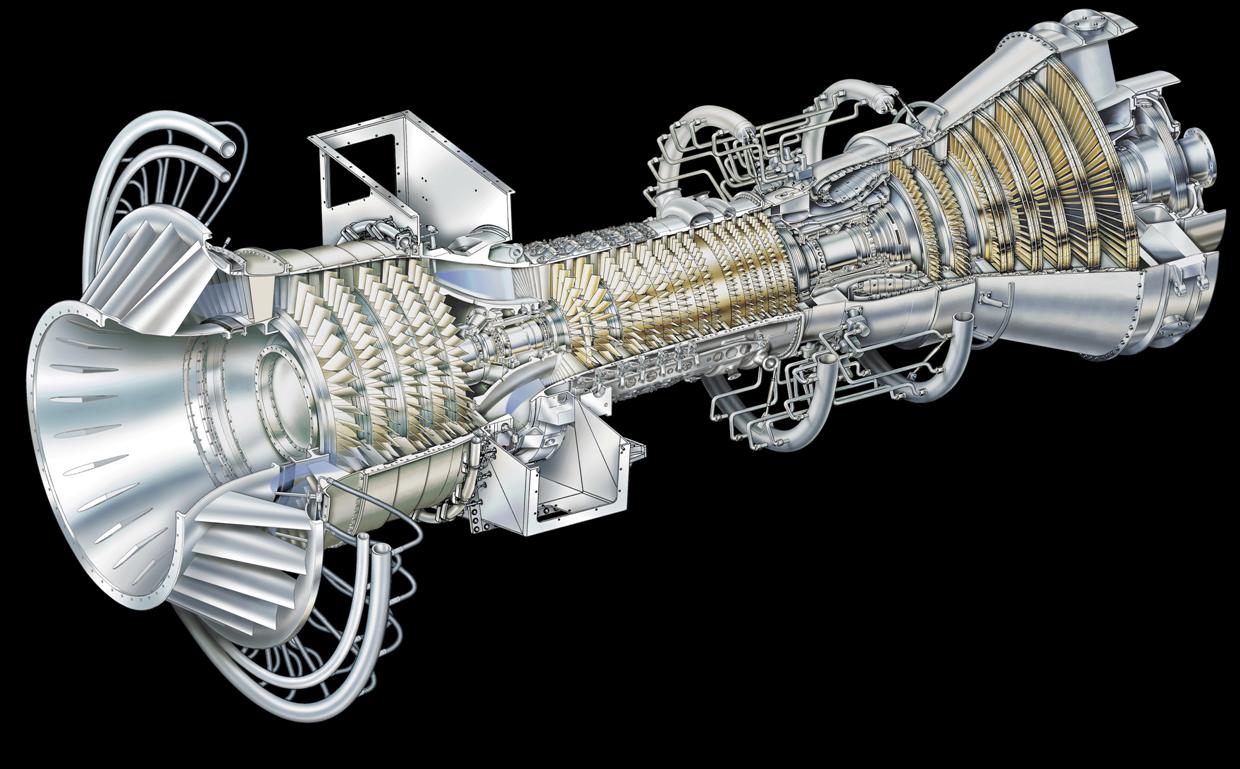

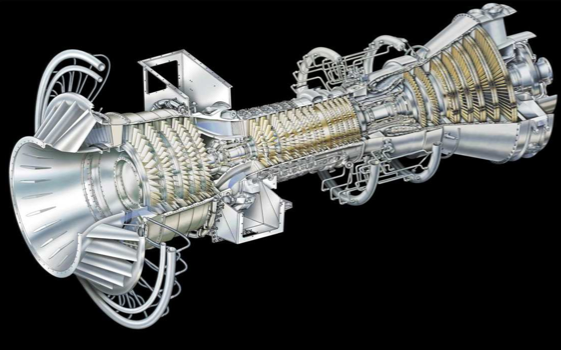

- Model LM6000 PD Sprint  47,483 kw ISO rated
- Boxed and crated for immediate shipment

• Air Cooled gen 60hz, 13.8 kv, 70 mva
- Combustion Air chiller coil within filter house

Fired hours since last
     hot section repair:

Attachment:

LM5000_gensets_factsheet_Apr2011.pdf

GE LM2500PE Direct Drive Generator Set

• For Sale

• Stewart & Stevenson unit, single I-Beam • Original in-service date - 1990 • 21,200 fired hours since hot section repair • Operated exclusively with natural gas • Expired PPA, plant closed - May, 2010

• Extensive scope of supply includes MCC, upgraded controls, flow enhancer, evaporation cool, breaker, switchgear, and exhaust stack • 13.8 kV, 60 Hz Brush two pole generator suitable for 50 Hz operation without modification • Available for immediate shipment - Watsonville, California

•    LM2500 worldwide fleet > 1000 •    SIx stage free power turbine •    Direct drive at 50 Hz or 60 Hz •    Dual fuel nozzles and manifolds Attachment:  Watsonville_LM2500_Genset_Fact_Sheet.pdf Read more Solar Titan 130 Turbine Generator Set - NEW For Sale 13,829 KW 10053 btu/kwh • Manufactured by Solar - 2001 • Never placed into service • So-Lo-NOx dry low NOx system • Professionally stored; inspected   by Solar - March, 2008 • Configured for 60 Hz, can convert to 50 Hz • Includes inlet/exhaust equipment • Includes all drawings and documentation Attachment:  Solar_Titan_130_Genset_Fact_Sheet.pdf Solar Mars 100 Turbine Generator Set SOLD For Sale 10,685 KW 10,513 btu/kwh (lhv) • Manufactured by Solar - 2001 • Never placed into service • So-Lo-NOx dry low NOx system • Professionally stored; inspected   by Solar - March, 2008 • Configured for 60 Hz, can convert to 50 Hz • Includes inlet/exhaust equipment • Includes all drawings and documentation • Deltak HRSG with diverter/stack, 300 psig,  32,000 lbs/hr steam, unfired Attachment:  Solar_Mars_100_genset_HRSG_Fact_Sheet.pdf GE LM6000 Gas Turbine Generator 50 Hz - Complete For Sale • Manufactured by Stewart & Stevenson - 1995 • Commercial Operation - Wuxi, China - 1996 • Dual fuel (natural gas or distillate oil) • Only 11,423 lifetime fired hours • Includes drawings and documentation • Complete simple cycle power plant • Includes exhaust stack, chillers, air-conditioned control house, step-up transformer, & switchyard • Owner has resources to disassemble and crate • Easy seaway access Attachment:  GE_LM6000_PA_genset_Fact_Sheet.pdf Two GE Frame 7EA Gas Turbines For Sale • Two identical units, commercial operation - 1989   Unit #1 Unit #2 • Dual fuel, diffusion combustor - Cogen Lifetime fired hours: 89,292 98,672 • Operated by major utility, U.S. jobsite Lifetime fired starts: 3,476 2,539 • Removed from service in May, 2010 Fired hours since last     hot gas path inspection: 5,860 5,852 • GE air-cooled, electric generators       • GE Speedtronic controls Fired hours since last Attachment:  GE_7EA_gensets_Fact_Sheet.pdf Read more Home For Sale Four GE-10 Gas Turbine Gensets GE LM2500PE Direct Drive Genset 50/60hz GE LM6000PA Genset 40 mw Three GE LM6000PD Sprint 60hz Gensets Two GE Frame 7EA Gas Turbines GE LM6000 PA Gas Turbine Genset 50 Hz Two GE LM5000 Gas Turbine GenSets Solar Titan 130 Turbine Genset - SOLD Solar Mars 100 Genset - SOLD Appraisal and Valuation Services Offered Selling Surplus or Used Equipment Appraisal and Valuation Sourcing Equipment Forecasting and Market Analysis About About Axford Turbine Consultants Projects Completed Shin Nippon Steam Turbine for Ghana LM6000 Sale to Venezuela Brush Generator for Canada FT8 Valuation Forecast for California Negotiation Assistance for Texas Client Self Generation Feasibility Study for Florida Publications Links Bio & Contact Mark Axford - Bio and Contact Info Rob McNamee - Bio and Contact Info Edward Stewart - Bio and Contact Info Paul Thompson - Bio and Contact Info Shin Nippon Steam Turbines Axford Affiliation with Shin Nippon Shin Nippon Steam Turbine Products Axial Exhaust and Other Design Features Email: maxford@axfordconsulting.com | Phone: 713-802-9654 | ©2013 Axford Turbine Consultants LLC | Site Map
